Koła zębate HTD 14M

Opis 1
Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat.

Koła zębate HTD 14M - Specyfikacja

Przesuń palcem w prawo, aby zobaczyć więcej informacji.

Oznaczenie :

Kod :

Z :

Dp :

De :

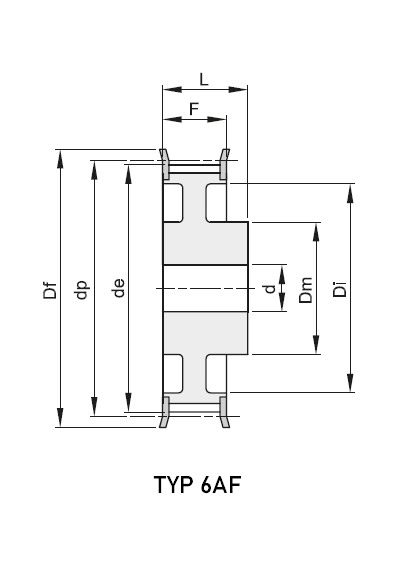

Oznaczenie	Kod	Wykonanie	Z	Dp	De	Df	Dm	Di	F	L	d	Waga [kg]
28 14M 40	14M4028	6F	28	124.78	122.12	128	100.0	-	54	69	24	4.7
29 14M 40	14M4029	6F	29	129.23	126.57	138	100.0	-	54	69	24	5.1
30 14M 40	14M4030	6F	30	133.69	130.99	138	100.0	-	54	69	24	5.5
32 14M 40	14M4032	6F	32	142.60	139.88	154	100.0	-	54	69	24	6.2
34 14M 40	14M4034	6F	34	151.52	148.79	160	100.0	-	54	69	24	6.9
36 14M 40	14M4036	6F	36	160.43	157.68	168	100.0	-	54	69	24	7.6
38 14M 40	14M4038	6F	38	169.34	166.6	183	120.0	-	54	69	24	8.3
40 14M 40	14M4040	6F	40	178.25	175.49	188	120.0	-	54	69	24	9.3
44 14M 40	14M4044	6F	44	196.08	193.28	211	120.0	-	54	69	24	10.3
48 14M 40	14M4048	6WF	48	213.90	211.11	226	135.0	170	54	69	24	11.5
56 14M 40	14M4056	6WF	56	249.55	246.76	256	135.0	207	54	69	28	13.1
64 14M 40	14M4064	6WF	64	285.21	282.41	296	135.0	240	54	69	28	14.4
72 14M 40	14M4072	6A	72	320.86	318.06	0	135.0	280	54	69	28	16.9
80 14M 40	14M4080	6A	80	356.51	353.71	0	135.0	314	54	69	28	18.5
90 14M 40	14M4090	6A	90	401.07	398.28	0	135.0	358	54	69	28	20.0
112 14M 40	14M4011	6A	112	499.11	496.32	0	135.0	456	54	69	28	26.7
144 14M 40	14M4014	6A	144	641.71	638.92	0	135.0	600	54	69	28	35.0
168 14M 40	14M4016	6A	168	748.66	745.87	0	135.0	706	54	69	28	44.2
192 14M 40	14M4019	6A	192	855.62	852.82	0	135.0	813	54	69	28	52.2
216 14M 40	14M4021	6A	216	962.57	959.76	0	150.0	920	54	69	28	62.5
28 14M 55	14M5528	6F	28	124.78	122.12	128	100.0	-	70	85	24	5.6
29 14M 55	14M5529	6F	29	129.23	126.57	138	100.0	-	70	85	24	6.1
30 14M 55	14M5530	6F	30	133.69	130.99	138	100.0	-	70	85	24	6.6
32 14M 55	14M5532	6F	32	142.60	139.88	154	100.0	-	70	85	24	7.6
34 14M 55	14M5534	6F	34	151.52	148.79	160	100.0	-	70	85	24	8.6
36 14M 55	14M5536	6F	36	160.43	157.68	168	100.0	-	70	85	24	9.6
38 14M 55	14M5538	6F	38	169.34	166.6	183	120.0	-	70	85	24	10.8
40 14M 55	14M5540	6F	40	178.25	175.49	188	120.0	-	70	85	24	11.2
44 14M 55	14M5544	6F	44	196.08	193.28	211	120.0	-	70	85	24	12.5
48 14M 55	14M5548	10WF	48	213.90	211.11	226	135.0	170	70	70	24	13.7
56 14M 55	14M5556	10WF	56	249.55	246.76	256	135.0	207	70	70	28	14.5
64 14M 55	14M5564	10WF	64	285.21	282.41	296	135.0	240	70	70	28	15.6
72 14M 55	14M5572	10A	72	320.86	318.06	0	135.0	280	70	70	28	16.9
80 14M 55	14M5580	10A	80	356.51	353.71	0	135.0	314	70	70	28	20.0
90 14M 55	14M5590	10A	90	401.07	398.28	0	135.0	358	70	70	28	22.6
112 14M 55	14M5511	10A	112	499.11	496.32	0	135.0	456	70	70	28	29.5
144 14M 55	14M5514	10A	144	641.71	638.92	0	135.0	600	70	70	28	39.0
168 14M 55	14M5516	10A	168	748.66	745.87	0	135.0	706	70	70	28	48.5
192 14M 55	14M5519	10A	192	855.62	852.82	0	135.0	813	70	70	28	57.8
216 14M 55	14M5521	10A	216	962.57	959.76	0	150.0	920	70	70	28	67.0
28 14M 85	14M8528	6F	28	124.78	122.12	128	100.0	-	102	117	24	7.7
29 14M 85	14M8529	6F	29	129.23	126.57	138	100.0	-	102	117	24	8.4
30 14M 85	14M8530	6F	30	133.69	130.99	138	100.0	-	102	117	24	9.1
32 14M 85	14M8532	6F	32	142.60	139.88	154	100.0	-	102	117	24	10.5
34 14M 85	14M8534	6F	34	151.52	148.79	160	100.0	-	102	117	24	11.9
36 14M 85	14M8536	6F	36	160.43	157.68	168	100.0	-	102	117	32	13.2
38 14M 85	14M8538	6F	38	169.34	166.6	183	120.0	-	102	117	32	15.2
40 14M 85	14M8540	6F	40	178.25	175.49	188	135.0	-	102	117	32	17.1
44 14M 85	14M8544	6F	44	196.08	193.28	211	135.0	-	102	117	32	23.3
48 14M 85	14M8548	6F	48	213.90	211.11	226	150.0	-	102	117	32	25.0
56 14M 85	14M8556	10WF	56	249.55	246.76	256	150.0	207	102	102	32	25.0
64 14M 85	14M8564	10WF	64	285.21	282.41	296	150.0	240	102	102	32	30.5
72 14M 85	14M8572	10A	72	320.86	318.06	0	150.0	278	102	102	32	28.8
80 14M 85	14M8580	10A	80	356.51	353.71	0	150.0	314	102	102	32	30.1
90 14M 85	14M8590	10A	90	401.07	398.28	0	150.0	358	102	102	32	33.0
112 14M 85	14M8511	10A	112	499.11	496.32	0	150.0	456	102	102	32	41.8
144 14M 85	14M8514	10A	144	641.71	638.92	0	150.0	600	102	102	32	52.4
168 14M 85	14M8516	10A	168	748.66	745.87	0	150.0	706	102	102	32	60.3
192 14M 85	14M8519	10A	192	855.62	852.82	0	165.0	813	102	102	32	70.2
216 14M 85	14M8521	10A	216	962.57	959.76	0	160.0	920	102	102	32	81.0
28 14M 115	14M1128	6F	28	124.78	122.12	128	100.0	-	133	148	32	9.2
29 14M 115	14M1129	6F	29	129.23	126.57	138	100.0	-	133	148	32	10.2
30 14M 115	14M1130	6F	30	133.69	130.99	138	100.0	-	133	148	32	11.2
32 14M 115	14M1132	6F	32	142.60	139.88	154	100.0	-	133	148	32	13.2
34 14M 115	14M1134	6F	34	151.52	148.79	160	100.0	-	133	148	32	14.8
36 14M 115	14M1136	6F	36	160.43	157.68	168	100.0	-	133	148	32	16.6
38 14M 115	14M1138	6F	38	169.34	166.6	183	120.0	-	133	148	32	19.2
40 14M 115	14M1140	6F	40	178.25	175.49	188	135.0	-	133	148	32	20.6
44 14M 115	14M1144	6F	44	196.08	193.28	211	140.0	-	133	148	32	21.9
48 14M 115	14M1148	6F	48	213.90	211.11	226	150.0	-	133	148	32	25.0
56 14M 115	14M1156	6F	56	249.55	246.76	256	150.0	-	133	148	32	27.5
64 14M 115	14M1164	10WF	64	285.21	282.41	296	150.0	240	133	133	32	30.1
72 14M 115	14M1172	10A	72	320.86	318.06	0	150.0	278	133	133	32	32.8
80 14M 115	14M1180	10A	80	356.51	353.71	0	150.0	314	133	133	32	35.6
90 14M 115	14M1190	10A	90	401.07	398.28	0	150.0	358	133	133	32	41.0
112 14M 115	14M1111	10A	112	499.11	496.32	0	150.0	456	133	133	32	54.4
144 14M 115	14M1114	10A	144	641.71	638.92	0	165.0	600	133	133	32	67.8
168 14M 115	14M1116	10A	168	748.66	745.87	0	165.0	706	133	133	32	75.8
192 14M 115	14M1119	10A	192	855.62	852.82	0	165.0	813	133	133	32	88.3
216 14M 115	14M1121	10A	216	962.57	959.76	0	165.0	920	133	133	32	98.0
28 14M 170	14M1728	6F	28	124.78	122.12	128	100.0	-	187	202	32	13.8
30 14M 170	14M1730	6F	30	133.69	130.99	138	100.0	-	187	202	32	15.6
32 14M 170	14M1732	6F	32	142.60	139.88	154	100.0	-	187	202	32	18.1
34 14M 170	14M1734	6F	34	151.52	148.79	160	100.0	-	187	202	32	22.8
36 14M 170	14M1736	6F	36	160.43	157.68	168	100.0	-	187	202	32	23.5
38 14M 170	14M1738	6F	38	169.34	166.6	183	120.0	-	187	202	32	26.5
40 14M 170	14M1740	6F	40	178.25	175.49	188	135.0	-	187	202	32	30.1
44 14M 170	14M1744	6F	44	196.08	193.28	211	140.0	-	187	202	32	37.8
48 14M 170	14M1748	6F	48	213.90	211.11	226	150.0	-	187	202	32	44.5
56 14M 170	14M1756	6F	56	249.55	246.76	256	150.0	-	187	202	32	61.0
64 14M 170	14M1764	10WF	64	285.21	282.41	296	150.0	240	187	187	32	81.0
80 14M 170	14M1780	10A	80	356.51	353.71	0	150.0	314	187	187	32	65.0
90 14M 170	14M1790	10A	90	401.07	398.28	0	150.0	358	187	187	32	68.0
112 14M 170	14M1711	10A	112	499.11	496.32	0	150.0	456	187	187	32	87.5
144 14M 170	14M1714	10A	144	641.71	638.92	0	165.0	600	187	187	32	114.0
168 14M 170	14M1716	10A	168	748.66	745.87	0	165.0	706	187	187	32	124.0
192 14M 170	14M1719	10A	192	855.62	852.82	0	165.0	813	187	187	32	136.4
216 14M 170	14M1721	10A	216	962.57	959.76	0	165.0	920	187	187	32	148.0

Opis 2
