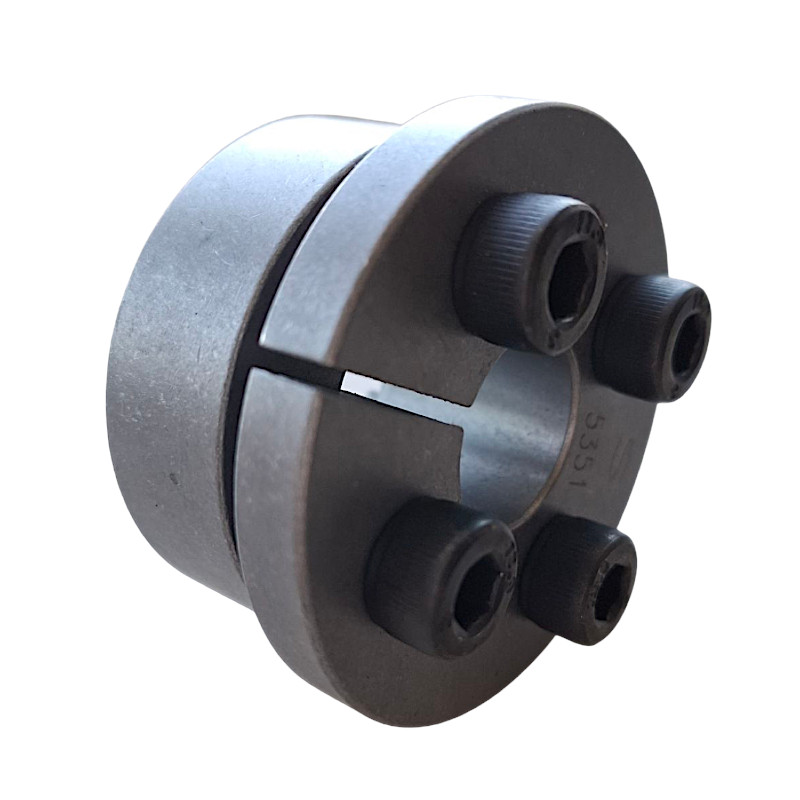

Tuleja BK15

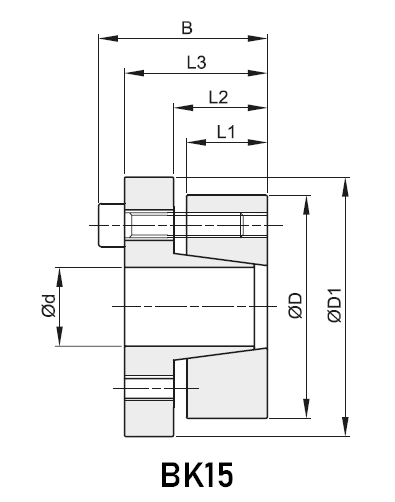

Tuleja BK15 - Specyfikacja

Przesuń palcem w prawo, aby zobaczyć więcej informacji.

NR katalogowy :

d :

D :

D1 :

H :

H1 :

H2 :

H3 :

wdt_ID	wdt_created_by	wdt_created_at	wdt_last_edited_by	wdt_last_edited_at	NR katalogowy	d	D	D1	H	H1	H2	H3	Śruby	Moment dokręcania (Nm)	Ilość śrub	Śruby do odkręcania	Ilość śrub	Przenoszony moment Mt (Nm)	Przenoszony moment Ta (KN)	Nacisk na wałek Pa (N/mm²)	Nacisk na piastę Pm (N/mm²)
891	admindagar	03/11/2025 08:14 PM	admindagar	03/11/2025 08:14 PM	KLBB114	14	55	62	39	31	17	22	M8x25	37	4	M8x25	2	234	33	415	106
892	admindagar	03/11/2025 08:14 PM	admindagar	03/11/2025 08:14 PM	KLBB116	16	55	62	39	31	17	22	M8x25	37	4	M8x25	2	268	33	363	106
893	admindagar	03/11/2025 08:14 PM	admindagar	03/11/2025 08:14 PM	KLBB118	18	55	62	39	31	17	22	M8x25	41	4	M8x25	2	333	37	357	117
894	admindagar	03/11/2025 08:14 PM	admindagar	03/11/2025 08:14 PM	KLBB119	19	55	62	39	31	17	22	M8x25	41	4	M8x25	2	352	37	338	117
895	admindagar	03/11/2025 08:14 PM	admindagar	03/11/2025 08:14 PM	KLBB120	20	55	62	39	31	17	22	M8x25	41	4	M8x25	2	370	37	321	117
896	admindagar	03/11/2025 08:14 PM	admindagar	03/11/2025 08:14 PM	KLBB122	22	55	62	39	31	17	22	M8x25	41	4	M8x25	2	407	37	292	117
897	admindagar	03/11/2025 08:14 PM	admindagar	03/11/2025 08:14 PM	KLBB124	24	55	62	39	31	17	22	M8x25	41	4	M8x25	2	445	37	268	117
898	admindagar	03/11/2025 08:14 PM	admindagar	03/11/2025 08:14 PM	KLBB125	25	55	62	39	31	17	22	M8x25	41	4	M8x25	2	463	37	257	117
899	admindagar	03/11/2025 08:14 PM	admindagar	03/11/2025 08:14 PM	KLBB128	28	55	62	39	31	17	22	M8x25	41	4	M8x25	2	519	37	229	117
900	admindagar	03/11/2025 08:14 PM	admindagar	03/11/2025 08:14 PM	KLBB130	30	55	62	39	31	17	22	M8x25	41	4	M8x25	2	556	37	214	117
901	admindagar	03/11/2025 08:14 PM	admindagar	03/11/2025 08:14 PM	KLBB224	24	65	72	39	31	17	22	M8x25	41	5	M8x25	3	556	46	335	124
902	admindagar	03/11/2025 08:14 PM	admindagar	03/11/2025 08:14 PM	KLBB225	25	65	72	39	31	17	22	M8x25	41	5	M8x25	3	579	46	321	124
903	admindagar	03/11/2025 08:14 PM	admindagar	03/11/2025 08:14 PM	KLBB228	28	65	72	39	31	17	22	M8x25	41	5	M8x25	3	649	46	287	124
904	admindagar	03/11/2025 08:14 PM	admindagar	03/11/2025 08:14 PM	KLBB230	30	65	72	39	31	17	22	M8x25	41	5	M8x25	3	695	46	268	124
905	admindagar	03/11/2025 08:14 PM	admindagar	03/11/2025 08:14 PM	KLBB232	32	65	72	39	31	17	22	M8x25	41	5	M8x25	3	741	46	251	124
906	admindagar	03/11/2025 08:14 PM	admindagar	03/11/2025 08:14 PM	KLBB233	33	65	72	39	31	17	22	M8x25	41	5	M8x25	3	764	46	242	124
907	admindagar	03/11/2025 08:14 PM	admindagar	03/11/2025 08:14 PM	KLBB235	35	65	72	39	31	17	22	M8x25	41	5	M8x25	3	811	46	230	124
908	admindagar	03/11/2025 08:14 PM	admindagar	03/11/2025 08:14 PM	KLBB238	38	65	72	39	31	17	22	M8x25	41	5	M8x25	3	917	46	211	124
909	admindagar	03/11/2025 08:14 PM	admindagar	03/11/2025 08:14 PM	KLBB240	40	65	72	39	31	17	22	M8x25	41	5	M8x25	3	966	46	201	124
910	admindagar	03/11/2025 08:14 PM	admindagar	03/11/2025 08:14 PM	KLBB330	30	80	87	41	33	20	25	M8x25	41	7	M8x25	3	972	65	318	119
911	admindagar	03/11/2025 08:14 PM	admindagar	03/11/2025 08:14 PM	KLBB332	32	80	87	41	33	20	25	M8x25	41	7	M8x25	3	1037	65	299	119
912	admindagar	03/11/2025 08:14 PM	admindagar	03/11/2025 08:14 PM	KLBB333	33	80	87	41	33	20	25	M8x25	41	7	M8x25	3	1069	65	289	119
913	admindagar	03/11/2025 08:14 PM	admindagar	03/11/2025 08:14 PM	KLBB335	35	80	87	41	33	20	25	M8x25	41	7	M8x25	3	1134	65	273	119
914	admindagar	03/11/2025 08:14 PM	admindagar	03/11/2025 08:14 PM	KLBB338	38	80	87	41	33	20	25	M8x25	41	7	M8x25	3	1231	65	251	119
915	admindagar	03/11/2025 08:14 PM	admindagar	03/11/2025 08:14 PM	KLBB340	40	80	87	41	33	20	25	M8x25	41	7	M8x25	3	1296	65	239	119
