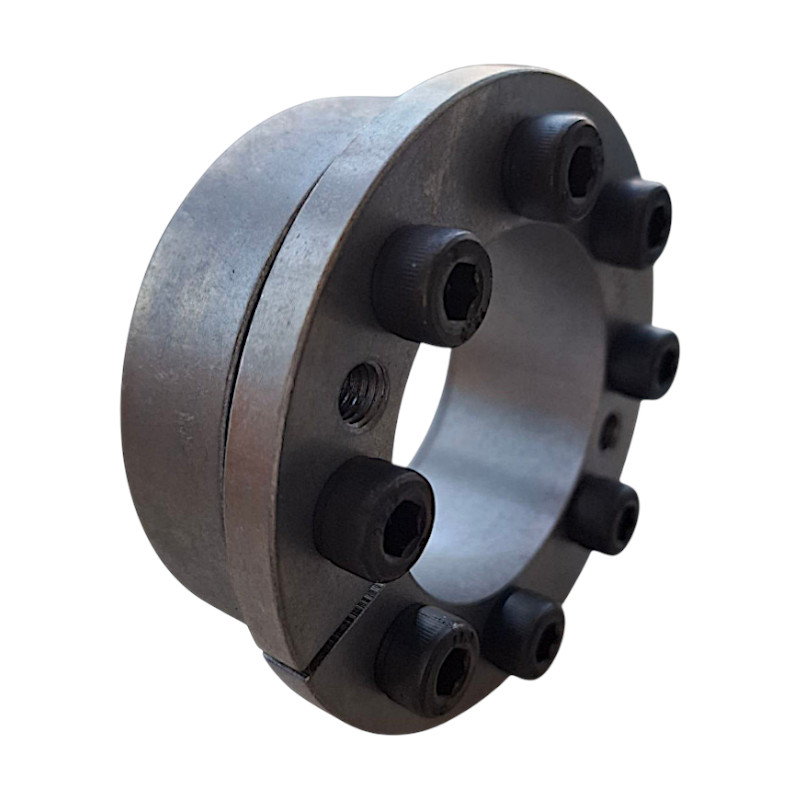

Tuleja BK16

Tuleja BK16 - Specyfikacja

Przesuń palcem w prawo, aby zobaczyć więcej informacji.

NR katalogowy :

d :

D :

D1 :

H :

H1 :

H2 :

H3 :

wdt_ID	wdt_created_by	wdt_created_at	wdt_last_edited_by	wdt_last_edited_at	NR katalogowy	d	D	D1	H	H1	H2	H3	Śruby	Moment dokręcania (Nm)	Ilość śrub	Śruby do odkręcania	Ilość śrub	Przenoszony moment Mt (Nm)	Przenoszony moment Ta (KN)	Nacisk na wałek Pa (N/mm²)	Nacisk na piastę Pm (N/mm²)
891	admindagar	03/11/2025 08:16 PM	admindagar	03/11/2025 08:16 PM	KLAB019	19	47	56	34	28	17	22	M6X20	17	5	M6X20	3	243	26	234	94
892	admindagar	03/11/2025 08:16 PM	admindagar	03/11/2025 08:16 PM	KLAB020	20	47	56	34	28	17	22	M6X20	17	5	M6X20	3	256	26	222	94
893	admindagar	03/11/2025 08:16 PM	admindagar	03/11/2025 08:16 PM	KLAB022	22	47	56	34	28	17	22	M6X20	17	5	M6X20	3	282	26	202	94
894	admindagar	03/11/2025 08:16 PM	admindagar	03/11/2025 08:16 PM	KLAB024	24	50	59	34	28	17	22	M6X20	17	6	M6X20	3	368	31	222	106
895	admindagar	03/11/2025 08:16 PM	admindagar	03/11/2025 08:16 PM	KLAB025	25	50	59	34	28	17	22	M6X20	17	6	M6X20	3	383	31	213	106
896	admindagar	03/11/2025 08:16 PM	admindagar	03/11/2025 08:16 PM	KLAB028	28	55	64	34	28	17	22	M6X20	17	6	M6X20	3	429	31	190	97
897	admindagar	03/11/2025 08:16 PM	admindagar	03/11/2025 08:16 PM	KLAB030	30	55	64	34	28	17	22	M6X20	17	6	M6X20	3	460	31	177	97
898	admindagar	03/11/2025 08:16 PM	admindagar	03/11/2025 08:16 PM	KLAB032	32	60	69	34	28	17	22	M6X20	17	8	M6X20	4	655	41	222	118
899	admindagar	03/11/2025 08:16 PM	admindagar	03/11/2025 08:16 PM	KLAB035	35	60	69	34	28	17	22	M6X20	17	8	M6X20	4	716	41	203	118
900	admindagar	03/11/2025 08:16 PM	admindagar	03/11/2025 08:16 PM	KLAB038	38	65	74	34	28	17	22	M6X20	17	8	M6X20	4	778	41	187	109
901	admindagar	03/11/2025 08:16 PM	admindagar	03/11/2025 08:16 PM	KLAB040	40	65	74	34	28	17	22	M6X20	17	8	M6X20	4	819	41	178	109
902	admindagar	03/11/2025 08:16 PM	admindagar	03/11/2025 08:16 PM	KLAB045	45	75	84	41	33	20	25	M8X25	41	7	M8X25	3	1458	65	212	127
903	admindagar	03/11/2025 08:16 PM	admindagar	03/11/2025 08:16 PM	KLAB050	50	80	89	41	33	20	25	M8X25	41	7	M8X25	3	1620	65	191	119
904	admindagar	03/11/2025 08:16 PM	admindagar	03/11/2025 08:16 PM	KLAB055	55	85	94	41	33	20	25	M8X25	41	8	M8X25	4	2037	74	199	129
905	admindagar	03/11/2025 08:16 PM	admindagar	03/11/2025 08:16 PM	KLAB060	60	90	99	41	33	20	25	M8X25	41	8	M8X25	4	2223	74	182	121
906	admindagar	03/11/2025 08:16 PM	admindagar	03/11/2025 08:16 PM	KLAB065	65	95	104	41	33	20	25	M8X25	41	9	M8X25	3	2710	83	189	129
907	admindagar	03/11/2025 08:16 PM	admindagar	03/11/2025 08:16 PM	KLAB070	70	110	119	50	40	24	30	M10X30	83	8	M10X30	4	4203	120	211	134
908	admindagar	03/11/2025 08:16 PM	admindagar	03/11/2025 08:16 PM	KLAB075	75	115	124	50	40	24	30	M10X30	83	8	M10X30	4	4754	120	197	128
909	admindagar	03/11/2025 08:16 PM	admindagar	03/11/2025 08:16 PM	KLAB080	80	120	129	50	40	24	30	M10X30	83	8	M10X30	4	4804	120	184	123
910	admindagar	03/11/2025 08:16 PM	admindagar	03/11/2025 08:16 PM	KLAB085	85	125	134	50	40	24	30	M10X30	83	9	M10X30	3	5742	135	195	133
911	admindagar	03/11/2025 08:16 PM	admindagar	03/11/2025 08:16 PM	KLAB090	90	130	139	50	40	24	30	M10X30	83	9	M10X30	3	6080	135	184	128
912	admindagar	03/11/2025 08:16 PM	admindagar	03/11/2025 08:16 PM	KLAB095	95	135	144	50	40	24	30	M10X30	83	10	M10X30	4	7131	150	194	137
913	admindagar	03/11/2025 08:16 PM	admindagar	03/11/2025 08:16 PM	KLAB100	100	145	154	56	44	26	32	M12X35	145	8	M12X35	4	8732	175	198	137
914	admindagar	03/11/2025 08:16 PM	admindagar	03/11/2025 08:16 PM	KLAB110	110	155	164	56	44	26	32	M12X35	145	8	M12X35	4	9605	175	180	128
915	admindagar	03/11/2025 08:16 PM	admindagar	03/11/2025 08:16 PM	KLAB120	120	165	174	56	44	26	32	M12X35	145	9	M12X35	4	11787	196	186	135
