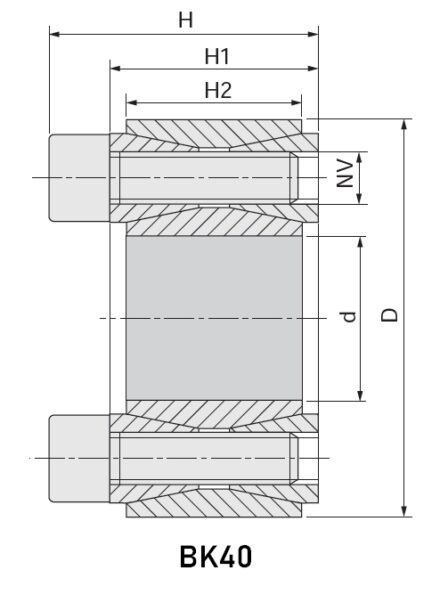

| wdt_ID | wdt_created_by | wdt_created_at | wdt_last_edited_by | wdt_last_edited_at | NR katalogowy | d | D | H | H1 | H2 | Śruby | Moment dokręcania (Nm) | Ilość śrub | Śruby do odkręcania | Ilość śrub | Przenoszony moment Mt (Nm) | Przenoszony moment Ta (KN) | Nacisk na wałek Pa (N/mm²) | Nacisk na piastę Pm (N/mm²) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 797 | admindagar | 03/11/2025 07:31 PM | admindagar | 03/11/2025 07:31 PM | KLGG019 | 19 | 47 | 26 | 20 | 17 | M6x18 | 14.9 | 8 | M8 | 2 | 298 | 31 | 286 | 116 |
| 798 | admindagar | 03/11/2025 07:31 PM | admindagar | 03/11/2025 07:31 PM | KLGG020 | 20 | 47 | 26 | 20 | 17 | M6x18 | 14.9 | 8 | M8 | 2 | 313 | 31 | 272 | 116 |
| 799 | admindagar | 03/11/2025 07:31 PM | admindagar | 03/11/2025 07:31 PM | KLGG022 | 22 | 47 | 26 | 20 | 17 | M6x18 | 14.9 | 8 | M8 | 2 | 345 | 31 | 247 | 116 |
| 800 | admindagar | 03/11/2025 07:31 PM | admindagar | 03/11/2025 07:31 PM | KLGG024 | 24 | 50 | 26 | 20 | 17 | M6x18 | 14.9 | 9 | M8 | 3 | 424 | 35 | 255 | 123 |
| 801 | admindagar | 03/11/2025 07:31 PM | admindagar | 03/11/2025 07:31 PM | KLGG025 | 25 | 50 | 26 | 20 | 17 | M6x18 | 14.9 | 9 | M8 | 3 | 441 | 35 | 245 | 123 |
| 802 | admindagar | 03/11/2025 07:31 PM | admindagar | 03/11/2025 07:31 PM | KLGG028 | 28 | 55 | 26 | 20 | 17 | M6x18 | 14.9 | 10 | M8 | 3 | 549 | 39 | 243 | 124 |
| 803 | admindagar | 03/11/2025 07:31 PM | admindagar | 03/11/2025 07:31 PM | KLGG030 | 30 | 55 | 26 | 20 | 17 | M6x18 | 14.9 | 10 | M8 | 3 | 588 | 39 | 227 | 124 |
| 804 | admindagar | 03/11/2025 07:31 PM | admindagar | 03/11/2025 07:31 PM | KLGG032 | 32 | 60 | 26 | 20 | 17 | M6x18 | 14.9 | 12 | M8 | 4 | 758 | 47 | 255 | 136 |
| 805 | admindagar | 03/11/2025 07:31 PM | admindagar | 03/11/2025 07:31 PM | KLGG035 | 35 | 60 | 26 | 20 | 17 | M6x18 | 14.9 | 12 | M8 | 4 | 822 | 47 | 233 | 136 |
| 806 | admindagar | 03/11/2025 07:31 PM | admindagar | 03/11/2025 07:31 PM | KLGG038 | 38 | 65 | 26 | 20 | 17 | M6x18 | 14.9 | 14 | M8 | 4 | 1042 | 55 | 250 | 146 |
| 807 | admindagar | 03/11/2025 07:31 PM | admindagar | 03/11/2025 07:31 PM | KLGG040 | 40 | 65 | 26 | 20 | 17 | M6x18 | 14.9 | 14 | M8 | 4 | 1097 | 55 | 238 | 146 |
| 808 | admindagar | 03/11/2025 07:31 PM | admindagar | 03/11/2025 07:31 PM | KLGG042 | 42 | 75 | 32 | 24 | 20 | M8x22 | 35.0 | 12 | M10 | 4 | 1740 | 83 | 291 | 163 |
| 809 | admindagar | 03/11/2025 07:31 PM | admindagar | 03/11/2025 07:31 PM | KLGG045 | 45 | 75 | 32 | 24 | 20 | M8x22 | 35.0 | 12 | M10 | 4 | 1864 | 83 | 271 | 163 |
| 810 | admindagar | 03/11/2025 07:31 PM | admindagar | 03/11/2025 07:31 PM | KLGG048 | 48 | 80 | 32 | 24 | 20 | M8x22 | 35.0 | 12 | M10 | 4 | 1988 | 83 | 254 | 153 |
| 811 | admindagar | 03/11/2025 07:31 PM | admindagar | 03/11/2025 07:31 PM | KLGG050 | 50 | 80 | 32 | 24 | 20 | M8x22 | 35.0 | 12 | M10 | 4 | 2071 | 83 | 244 | 153 |
| 812 | admindagar | 03/11/2025 07:31 PM | admindagar | 03/11/2025 07:31 PM | KLGG055 | 55 | 85 | 32 | 24 | 20 | M8x22 | 35.0 | 14 | M10 | 4 | 2658 | 97 | 259 | 168 |
| 813 | admindagar | 03/11/2025 07:31 PM | admindagar | 03/11/2025 07:31 PM | KLGG060 | 60 | 90 | 32 | 24 | 20 | M8x22 | 35.0 | 14 | M10 | 4 | 2900 | 97 | 238 | 158 |
| 814 | admindagar | 03/11/2025 07:31 PM | admindagar | 03/11/2025 07:31 PM | KLGG065 | 65 | 95 | 32 | 24 | 20 | M8x22 | 35.0 | 16 | M10 | 4 | 3587 | 110 | 250 | 171 |
| 815 | admindagar | 03/11/2025 07:31 PM | admindagar | 03/11/2025 07:31 PM | KLGG070 | 70 | 110 | 38 | 28 | 24 | M10x25 | 69.0 | 14 | M12 | 4 | 5345 | 153 | 268 | 171 |
| 816 | admindagar | 03/11/2025 07:31 PM | admindagar | 03/11/2025 07:31 PM | KLGG075 | 75 | 115 | 38 | 28 | 24 | M10x25 | 69.0 | 14 | M12 | 4 | 5727 | 153 | 250 | 163 |
| 817 | admindagar | 03/11/2025 07:31 PM | admindagar | 03/11/2025 07:31 PM | KLGG080 | 80 | 120 | 38 | 28 | 24 | M10x25 | 69.0 | 14 | M12 | 4 | 6108 | 153 | 235 | 156 |
| 818 | admindagar | 03/11/2025 07:31 PM | admindagar | 03/11/2025 07:31 PM | KLGG085 | 85 | 125 | 38 | 28 | 24 | M10x25 | 69.0 | 16 | M12 | 4 | 7417 | 175 | 252 | 172 |
| 819 | admindagar | 03/11/2025 07:31 PM | admindagar | 03/11/2025 07:31 PM | KLGG090 | 90 | 130 | 38 | 28 | 24 | M10x25 | 69.0 | 16 | M12 | 4 | 7854 | 175 | 238 | 165 |
| 820 | admindagar | 03/11/2025 07:31 PM | admindagar | 03/11/2025 07:31 PM | KLGG095 | 95 | 135 | 38 | 28 | 24 | M10x25 | 69.0 | 18 | M12 | 4 | 9326 | 196 | 254 | 179 |
| 821 | admindagar | 03/11/2025 07:31 PM | admindagar | 03/11/2025 07:31 PM | KLGG100 | 100 | 145 | 45 | 33 | 26 | M12x30 | 123.3 | 14 | M14 | 4 | 11362 | 227 | 258 | 178 |
