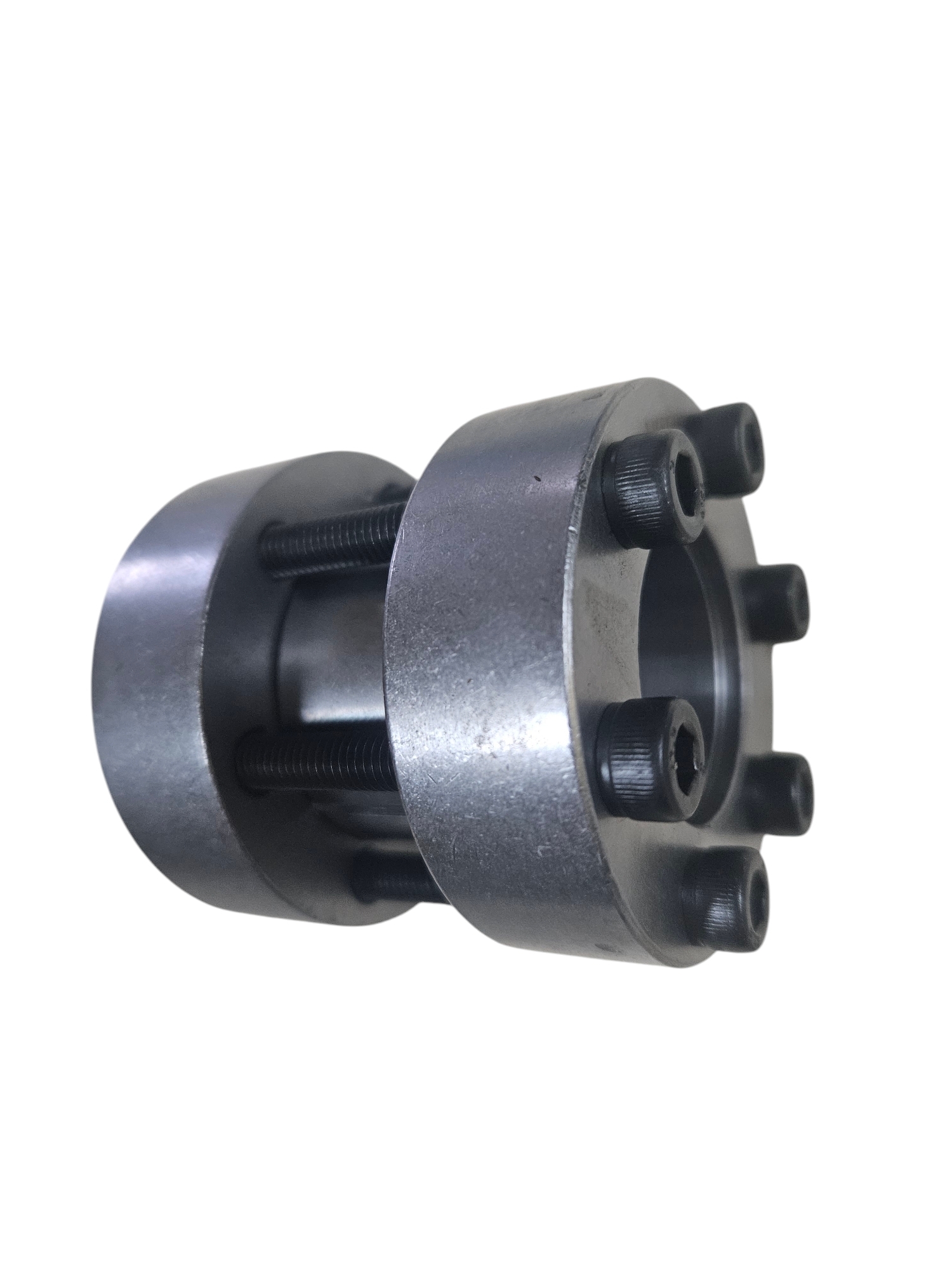

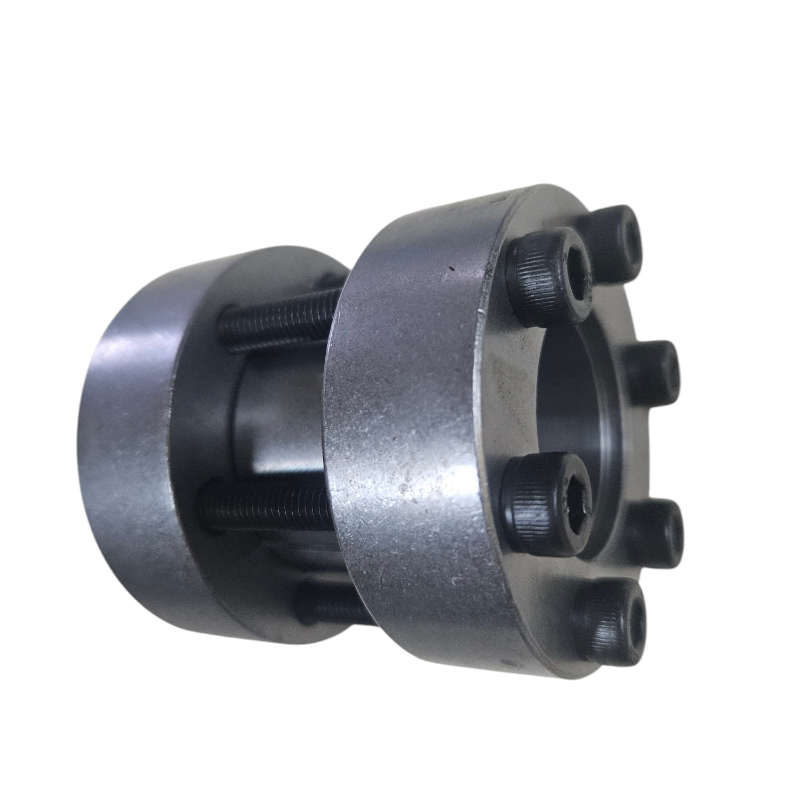

Tuleja BK95

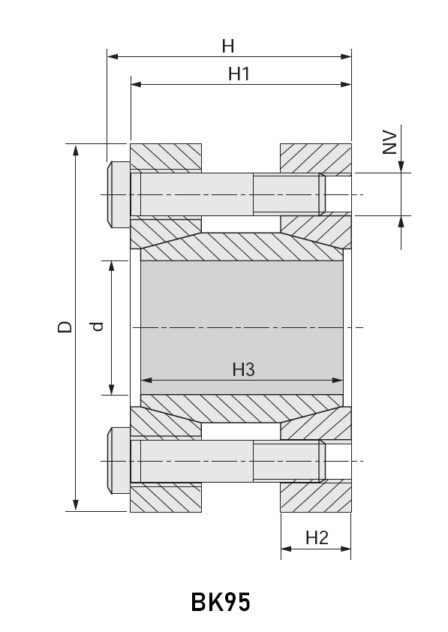

Tuleja BK95 - Specyfikacja

Przesuń palcem w prawo, aby zobaczyć więcej informacji.

NR katalogowy :

d :

D :

H :

H1 :

H2 :

H3 :

wdt_ID	wdt_created_by	wdt_created_at	wdt_last_edited_by	wdt_last_edited_at	NR katalogowy	d	D	H	H1	H2	H3	Śruby	Moment dokręcania (Nm)	Ilość śrub	Przenoszony moment Mt (Nm)	Przenoszony moment Ta (KN)	Nacisk na wałek Pa (N/mm²)
675	admindagar	03/11/2025 08:02 PM	admindagar	03/11/2025 08:02 PM	KLMM017	17	50	56	50	16	44	M6x45	17	4	179	21	166
676	admindagar	03/11/2025 08:02 PM	admindagar	03/11/2025 08:02 PM	KLMM018	18	50	56	50	16	44	M6x45	17	4	190	21	157
677	admindagar	03/11/2025 08:02 PM	admindagar	03/11/2025 08:02 PM	KLMM019	19	50	56	50	16	44	M6x45	17	4	200	21	149
678	admindagar	03/11/2025 08:02 PM	admindagar	03/11/2025 08:02 PM	KLMM020	20	50	56	50	16	44	M6x45	17	4	211	21	141
679	admindagar	03/11/2025 08:02 PM	admindagar	03/11/2025 08:02 PM	KLMM024	24	55	66	60	18.5	54	M6x55	17	6	378	32	144
680	admindagar	03/11/2025 08:02 PM	admindagar	03/11/2025 08:02 PM	KLMM025	25	55	66	60	18.5	54	M6x55	17	6	394	32	138
681	admindagar	03/11/2025 08:02 PM	admindagar	03/11/2025 08:02 PM	KLMM028	28	60	66	60	18.5	54	M6x55	17	6	442	32	123
682	admindagar	03/11/2025 08:02 PM	admindagar	03/11/2025 08:02 PM	KLMM030	30	60	66	60	18.5	54	M6x55	17	6	473	32	115
683	admindagar	03/11/2025 08:02 PM	admindagar	03/11/2025 08:02 PM	KLMM032	32	63	66	60	18.5	54	M6x55	17	6	505	32	108
684	admindagar	03/11/2025 08:02 PM	admindagar	03/11/2025 08:02 PM	KLMM035	35	75	83	75	22	67	M8x70	42	4	682	39	98
685	admindagar	03/11/2025 08:02 PM	admindagar	03/11/2025 08:02 PM	KLMM038	38	75	83	75	22	67	M8x70	42	4	741	39	90
686	admindagar	03/11/2025 08:02 PM	admindagar	03/11/2025 08:02 PM	KLMM040	40	75	83	75	22	67	M8x70	42	4	780	39	86
687	admindagar	03/11/2025 08:02 PM	admindagar	03/11/2025 08:02 PM	KLMM042	42	78	83	75	22	67	M8x70	42	4	819	39	82
688	admindagar	03/11/2025 08:02 PM	admindagar	03/11/2025 08:02 PM	KLMM045	45	85	93	85	24.5	76	M8x80	42	6	1317	59	101
689	admindagar	03/11/2025 08:02 PM	admindagar	03/11/2025 08:02 PM	KLMM048	48	90	93	85	24.5	76	M8x80	42	6	1405	59	95
690	admindagar	03/11/2025 08:02 PM	admindagar	03/11/2025 08:02 PM	KLMM050	50	90	93	85	24.5	76	M8x80	42	6	1463	59	91
691	admindagar	03/11/2025 08:02 PM	admindagar	03/11/2025 08:02 PM	KLMM055	55	94	93	85	24.5	76	M8x80	42	8	2147	78	110
692	admindagar	03/11/2025 08:02 PM	admindagar	03/11/2025 08:02 PM	KLMM060	60	100	93	85	24.5	76	M8x80	42	8	2343	78	101
693	admindagar	03/11/2025 08:02 PM	admindagar	03/11/2025 08:02 PM	KLMM065	65	105	93	85	24.5	76	M8x80	42	8	2538	78	93
694	admindagar	03/11/2025 08:02 PM	admindagar	03/11/2025 08:02 PM	KLMM070	70	115	110	100	29	90	M10x95	83	8	4321	123	116
