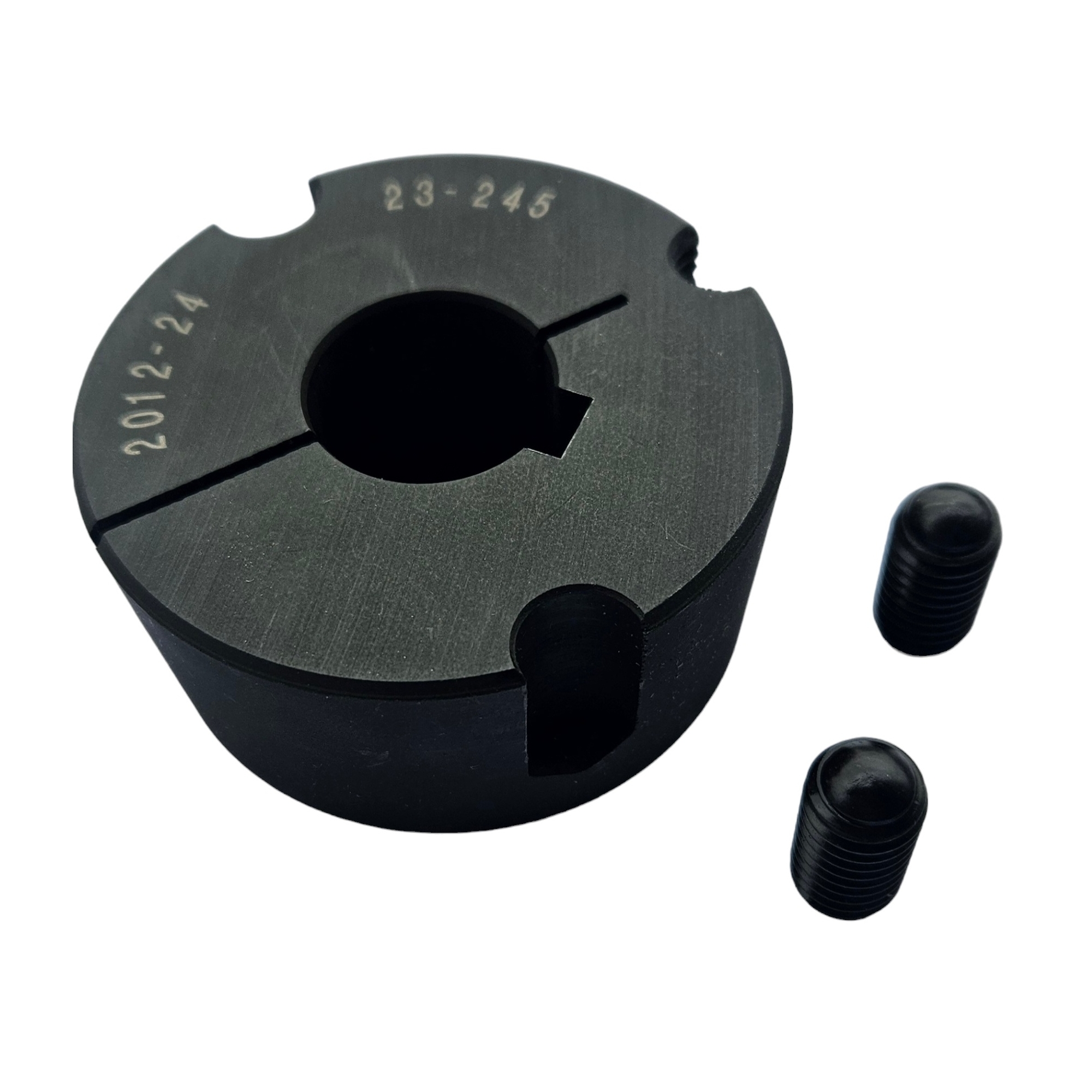

Tuleja Taper Lock

Tuleja Taper Lock - Specyfikacja

Przesuń palcem w prawo, aby zobaczyć więcej informacji.

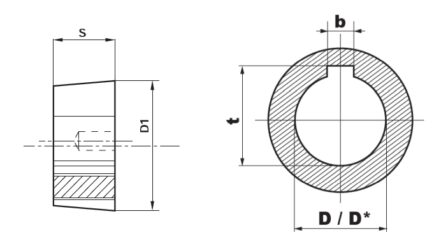

Numer :

Otwór D :

D1 :

S :

b :

Przenoszony moment Nm :

wdt_ID	wdt_created_by	wdt_created_at	wdt_last_edited_by	wdt_last_edited_at	Numer	Otwór D	D1	S	b	Js9	t	Przenoszony moment Nm	Typ	Śruba	Dokręcanie śruby Nm	Waga
905	admindagar	03/11/2025 08:54 PM	admindagar	03/11/2025 08:54 PM	1008	9	35.0	22.3	4	± 0,015	10.8	136	1	1/4'' x 1/2''	5.6	0.16
906	admindagar	03/11/2025 08:54 PM	admindagar	03/11/2025 08:54 PM	1008	10	35.0	22.3	4	± 0,015	11.8	136	1	1/4'' x 1/2''	5.6	0.16
907	admindagar	03/11/2025 08:54 PM	admindagar	03/11/2025 08:54 PM	1008	11	35.0	22.3	4	± 0,015	12.8	136	1	1/4'' x 1/2''	5.6	0.16
908	admindagar	03/11/2025 08:54 PM	admindagar	03/11/2025 08:54 PM	1008	12	35.0	22.3	4	± 0,015	13.8	136	1	1/4'' x 1/2''	5.6	0.16
909	admindagar	03/11/2025 08:54 PM	admindagar	03/11/2025 08:54 PM	1008	14	35.0	22.3	5	± 0,015	16.3	136	1	1/4'' x 1/2''	5.6	0.16
910	admindagar	03/11/2025 08:54 PM	admindagar	03/11/2025 08:54 PM	1008	15	35.0	22.3	5	± 0,015	17.3	136	1	1/4'' x 1/2''	5.6	0.16
911	admindagar	03/11/2025 08:54 PM	admindagar	03/11/2025 08:54 PM	1008	16	35.0	22.3	5	± 0,015	18.3	136	1	1/4'' x 1/2''	5.6	0.16
912	admindagar	03/11/2025 08:54 PM	admindagar	03/11/2025 08:54 PM	1008	18	35.0	22.3	6	± 0,015	20.8	136	1	1/4'' x 1/2''	5.6	0.16
913	admindagar	03/11/2025 08:54 PM	admindagar	03/11/2025 08:54 PM	1008	19	35.0	22.3	6	± 0,015	21.8	136	1	1/4'' x 1/2''	5.6	0.16
914	admindagar	03/11/2025 08:54 PM	admindagar	03/11/2025 08:54 PM	1008	20	35.0	22.3	6	± 0,015	22.8	136	1	1/4'' x 1/2''	5.6	0.16
915	admindagar	03/11/2025 08:54 PM	admindagar	03/11/2025 08:54 PM	1008	22	35.0	22.3	6	± 0,015	24.8	136	1	1/4'' x 1/2''	5.6	0.16
916	admindagar	03/11/2025 08:54 PM	admindagar	03/11/2025 08:54 PM	1008	24	35.0	22.3	8	± 0,018	25.3	136	1	1/4'' x 1/2''	5.6	0.16
917	admindagar	03/11/2025 08:54 PM	admindagar	03/11/2025 08:54 PM	1008	25	35.0	22.3	8	± 0,018	26.3	136	1	1/4'' x 1/2''	5.6	0.16
918	admindagar	03/11/2025 08:54 PM	admindagar	03/11/2025 08:54 PM	1108	9	38.0	22.3	4	± 0,015	10.8	147	1	1/4'' x 1/2''	5.6	0.16
919	admindagar	03/11/2025 08:54 PM	admindagar	03/11/2025 08:54 PM	1108	10	38.0	22.3	4	± 0,015	11.8	147	1	1/4'' x 1/2''	5.6	0.16
920	admindagar	03/11/2025 08:54 PM	admindagar	03/11/2025 08:54 PM	1108	11	38.0	22.3	4	± 0,015	12.8	147	1	1/4'' x 1/2''	5.6	0.16
921	admindagar	03/11/2025 08:54 PM	admindagar	03/11/2025 08:54 PM	1108	12	38.0	22.3	4	± 0,015	13.8	147	1	1/4'' x 1/2''	5.6	0.16
922	admindagar	03/11/2025 08:54 PM	admindagar	03/11/2025 08:54 PM	1108	14	38.0	22.3	5	± 0,015	16.3	147	1	1/4'' x 1/2''	5.6	0.16
923	admindagar	03/11/2025 08:54 PM	admindagar	03/11/2025 08:54 PM	1108	15	38.0	22.3	5	± 0,015	17.3	147	1	1/4'' x 1/2''	5.6	0.16
924	admindagar	03/11/2025 08:54 PM	admindagar	03/11/2025 08:54 PM	1108	16	38.0	22.3	5	± 0,015	18.3	147	1	1/4'' x 1/2''	5.6	0.16
925	admindagar	03/11/2025 08:54 PM	admindagar	03/11/2025 08:54 PM	1108	18	38.0	22.3	6	± 0,015	20.8	147	1	1/4'' x 1/2''	5.6	0.16
926	admindagar	03/11/2025 08:54 PM	admindagar	03/11/2025 08:54 PM	1108	19	38.0	22.3	6	± 0,015	21.8	147	1	1/4'' x 1/2''	5.6	0.16
927	admindagar	03/11/2025 08:54 PM	admindagar	03/11/2025 08:54 PM	1108	20	38.0	22.3	6	± 0,015	22.8	147	1	1/4'' x 1/2''	5.6	0.16
928	admindagar	03/11/2025 08:54 PM	admindagar	03/11/2025 08:54 PM	1108	22	38.0	22.3	6	± 0,015	24.8	147	1	1/4'' x 1/2''	5.6	0.16
929	admindagar	03/11/2025 08:54 PM	admindagar	03/11/2025 08:54 PM	1108	24	38.0	22.3	8	± 0,018	27.3	147	1	1/4'' x 1/2''	5.6	0.16
